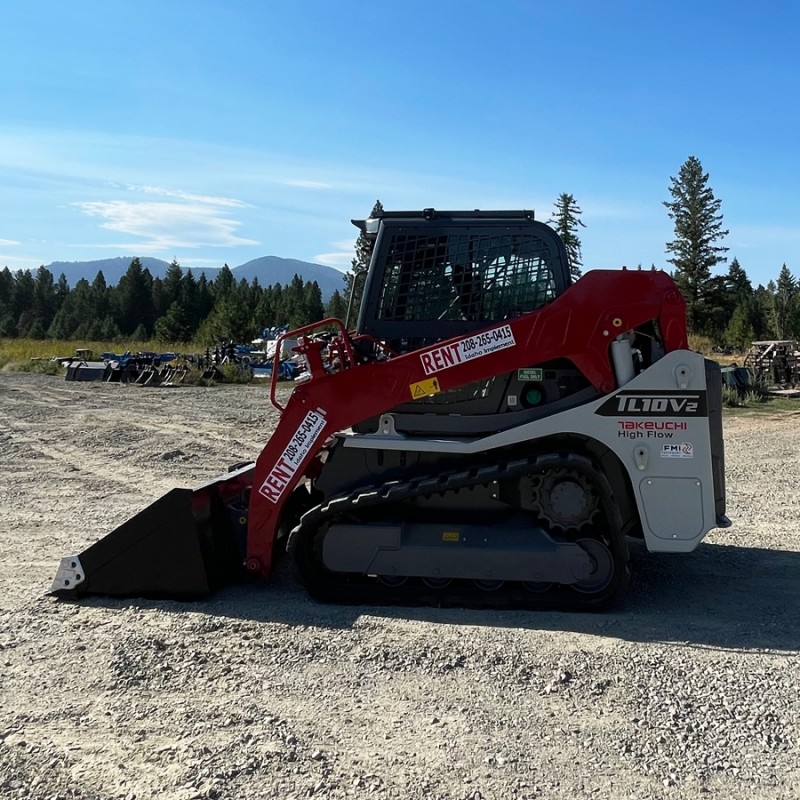

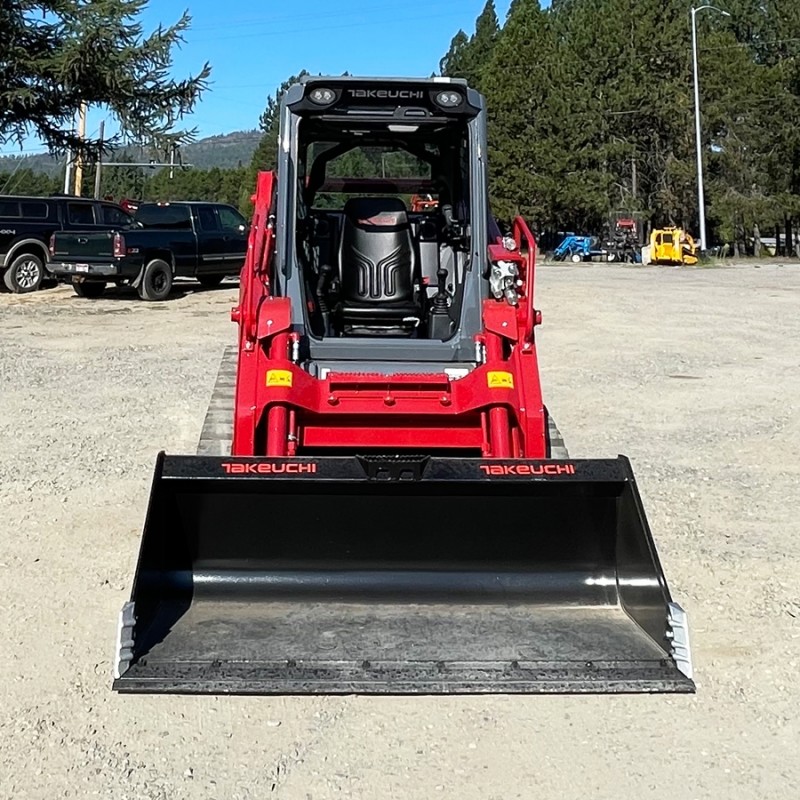

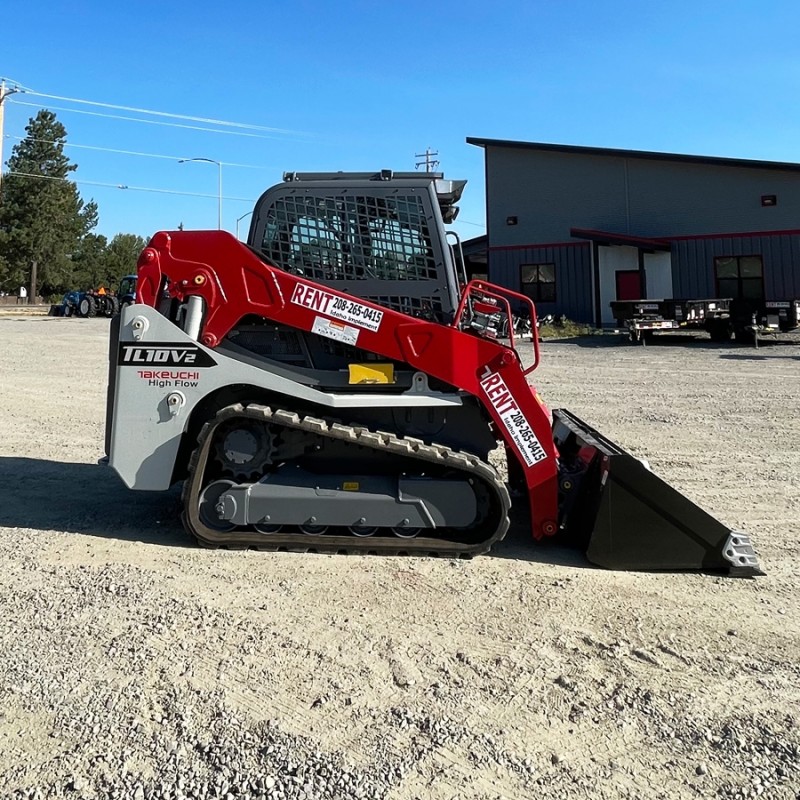

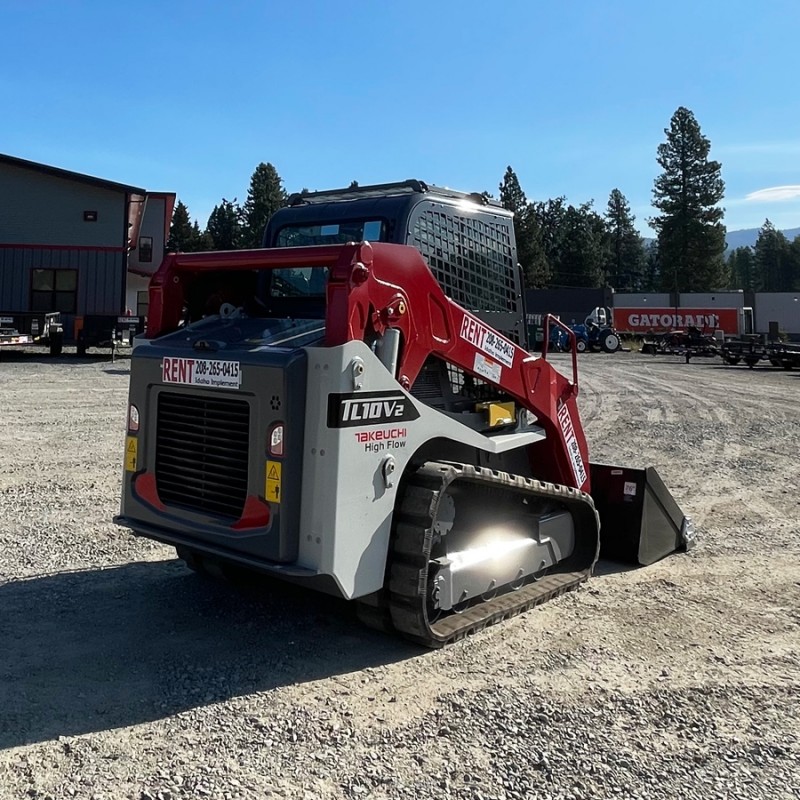

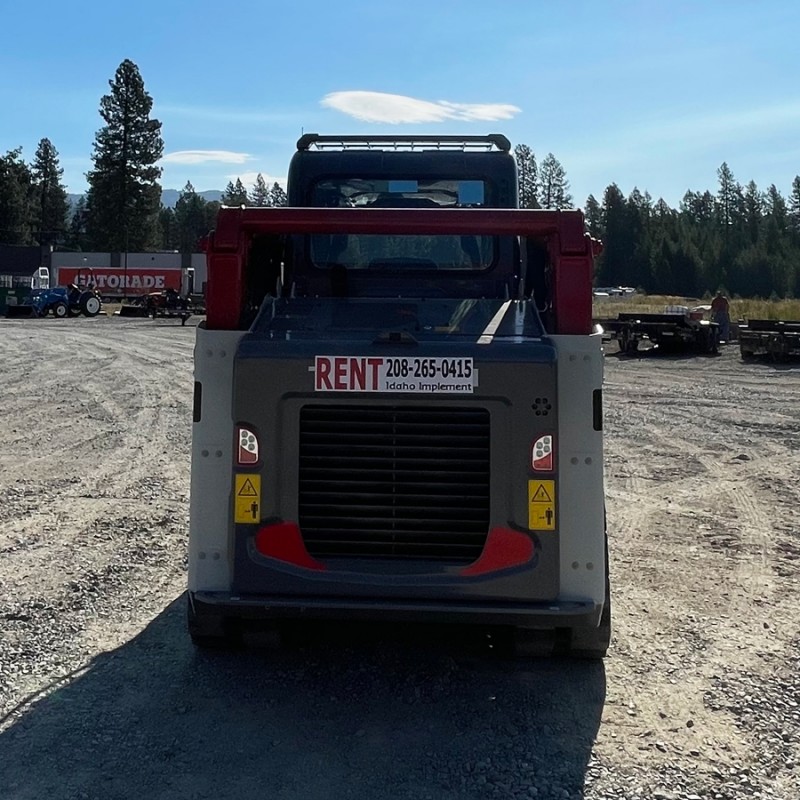

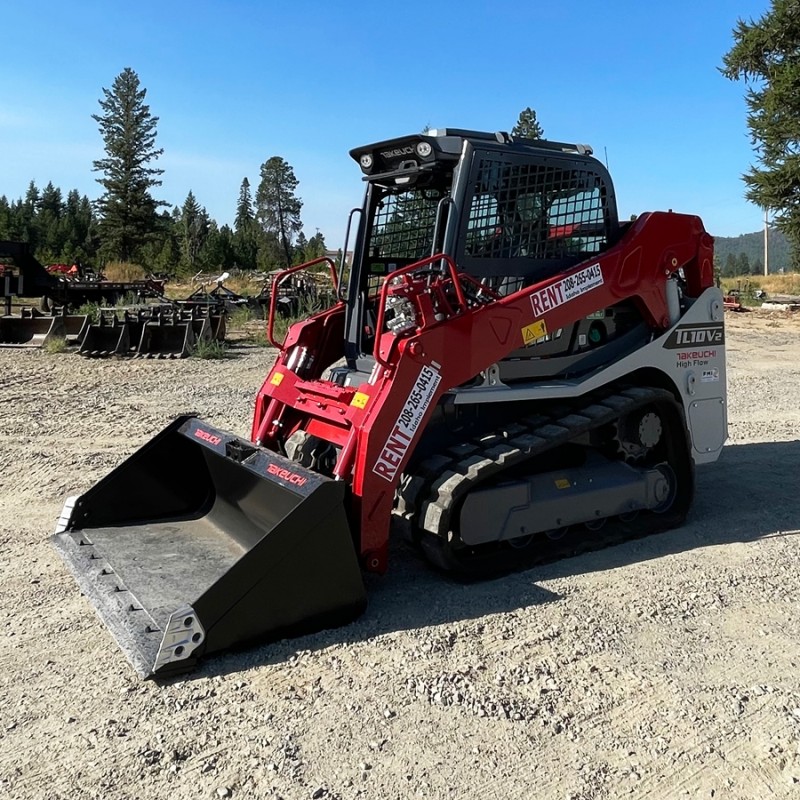

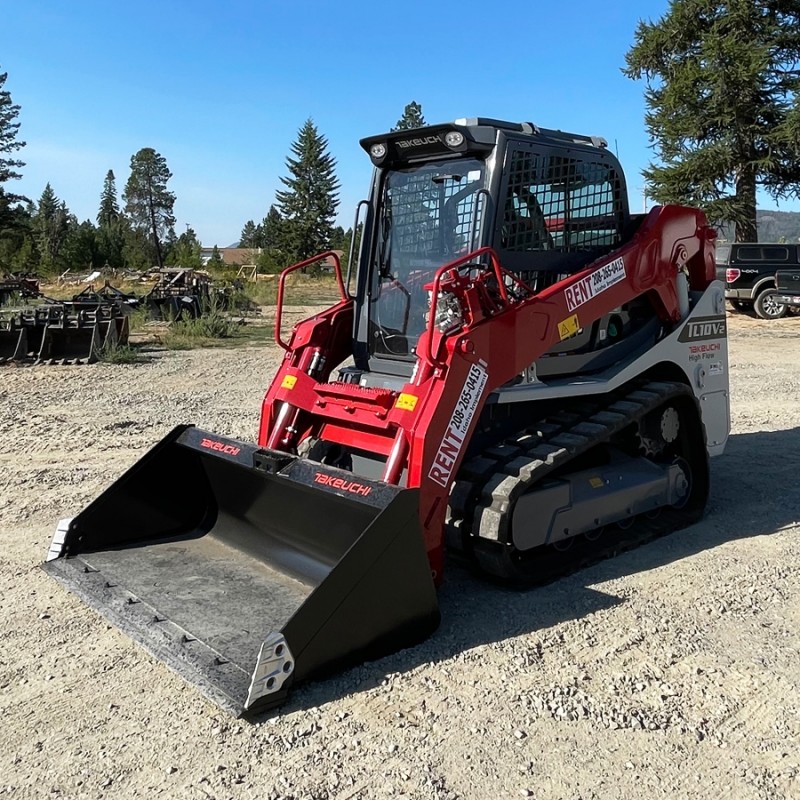

10,000 lbs Track Loader, Enclosed Cab, Heat, AC, High Flow, 2-Speed Travel, Takeuchi Model TL10V2-49

More Views

Images are representative but may vary from actual product and/or show optional features.

  • Be the first to review this product

Availability: In stock

SKU:REN-TL10V2-49-SALE

$69,900.00

If cancelled or rebooked, a Cancellation Fee of + any applicable tax will apply.

    Details

    10,000 lbs Track Loader, Enclosed Cab, Heat, AC, High Flow, 2-Speed Travel, Takeuchi Model TL10V2-49

    The TL10V2 vertical lift track delivers excellent functionality, performance, comfort, and serviceability. It features a completely redesigned operator' station with a 5.7" color multi-information display and updated rocker switches that control a wide range of machine functions. Cab models have a smooth, low effort overhead door that improves entry and egress and enables the loader to be operated with the door in the raised or lowered position. An updated undercarriage with a wide block quiet ride track system provides better flotation, improved ride quality, and a reduction in noise and vibration.

    Features

    ENGINE
    • EPA Final Tier 4 Emission Compliant
    • Turbocharged
    • High Pressure Common Rail Injection System
    • DOC+DPF Exhaust After Treatment
    • Automatic Fuel Bleed System
    • Active Power Control Power Management System
    • Working Modes - Standard and ECO
    • Dual Element Air Filter
    • Dial and Foot Throttle
    • High Capacity Radiator and Hydraulic Oil Cooler Mounted Side-by-Side on Swing Out Frame

    ELECTRICAL
    • 5.7" Multi-Informational Color Display
    • Sealed Rocker Switches
    • 12 volt System with 60 amp Alternator
    • LED Work Lights: Two Front and Two Rear
    • Engine Preheat
    • Hour Meter
    • Back-up Alarm

    UNDERCARRIAGE AND FRAME
    • Double Planetary Reduction Drives
    • Permanently Sealed Track Rollers with Metal Face Seals
    • Fully Welded Frame with Integrated Cross Members
    • Two-Speed Travel
    • 15.7” Rubber Track
    • Grease Type Track Adjuster
    • Front and Rear Tie-Down Points and Lift Points
    • Rear Bumper Integrated into Frame

    HYDRAULIC & WORKING EQUIPMENT
    • Vertical Lift Design
    • Pilot Hydraulic Controls
    • Boom Float with Detent
    • Cushioned Boom Cylinders
    • Hydraulic Self Leveling
    • Proportional Auxiliary Hydraulic Controls with Detent
    • Pressure Relieving Flat Faced Coupler Body
    • 14-Pin Connector with Push Button Control
    • High Capacity Steel Hydraulic Tank
    • Hydraulic Quick Coupler
    • High Flow Auxiliary Hydraulics 32.8 gpm

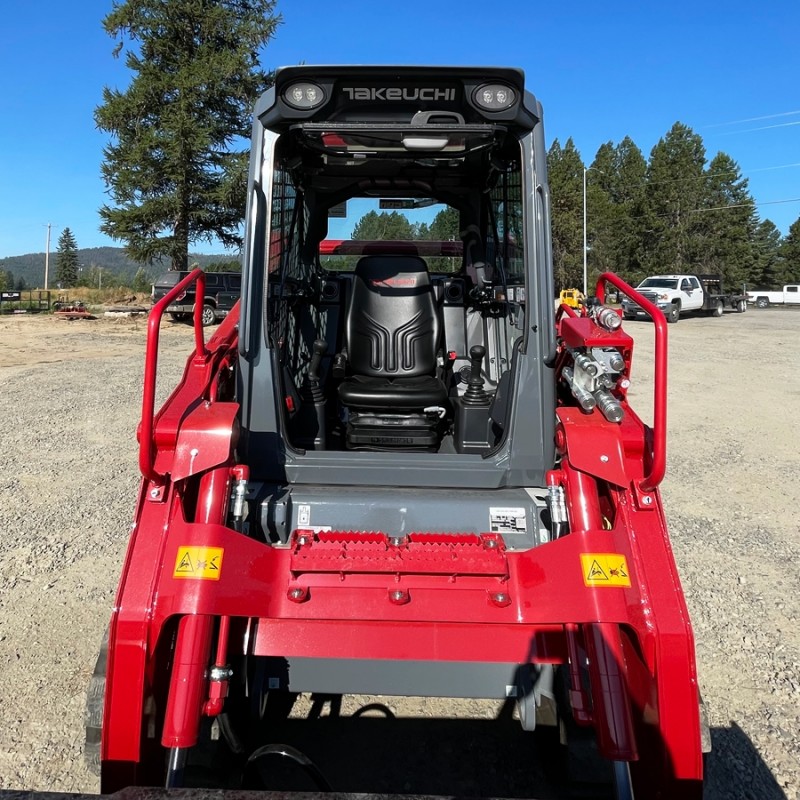

    OPERATOR’S STATION
    • Tilt-up Operator’s Station
    • Deluxe High Back Suspension Seat
    • Rear View Camera
    • Rear Pivoting Lap Bar with Arm Rest
    • ROPS / FOPS Structure
    • Retractable 2” Seat Belt

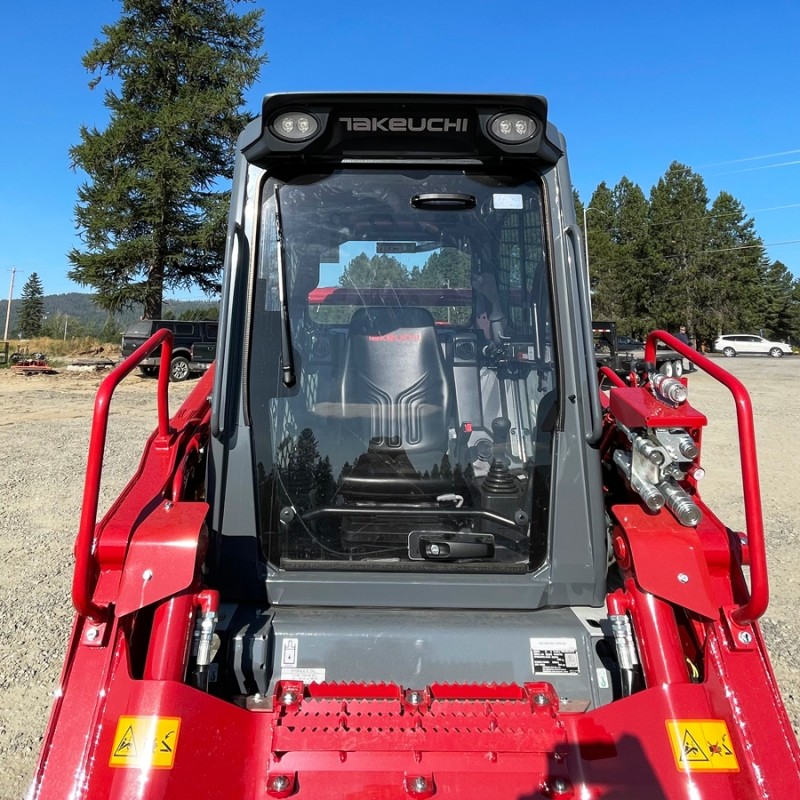

    • Pressurized Cab with Roll-up Door A/C, Heat, Defrost and Front Wiper
    • AM / FM / MP3 Radio
    • Polycarbonate Door and Level 2 Guard

    Specifications

    • Weight
    • 10300 lbs (4672.01 kg)
    • Manufacturer
    • Takeuchi
    • Operator Station
    • Enclosed Cab, Heat & A/C
    • Horsepower
    • 74.3 hp
    • Features
    • Air Conditioning, Bucket Quick-Change, Enclosed Cab, EROPS, Heat, ROPS, Rubber Tracks
    • Auxiliary Hydraulic Flow
    • Standard: 18.8 gpm (71.2 lpm); High Flow: 32.8 gpm (124.0 lpm)
    • Height, Maximum Lift
    • 121" (10'-1") to Bucket Pins
    • Capacity, Operating
    • At 50% of Tipping Load: 3,600 lbs
    • Tipping Load
    • 7,205 lbs
    • Width, Bucket(s)
    • 76"
    • Capacity, Fuel
    • 21.5 gal (81.0 l)
    • Capacity, Hydraulic System
    • 17.2 gal (65.0 l)
    • Capacity, Engine Oil
    • 11.8 qt (11.2 l)
    • Length
    • 145" (12'-1") - Including Bucket
    • Width
    • 68.5" (5'-8.5") - Outside of Tracks
    • Height
    • 89.4" (7'-5.4")
    • Color
    • Red
