SKU:REN-SJ519TH-31

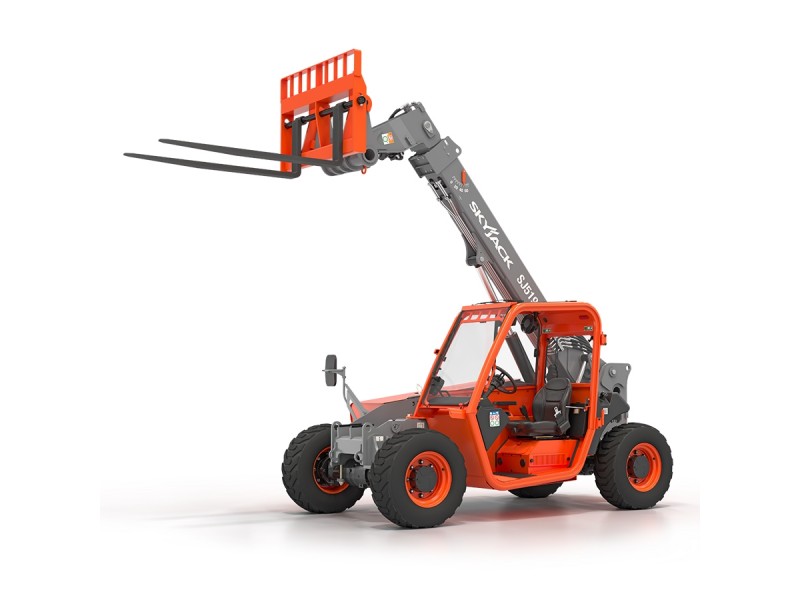

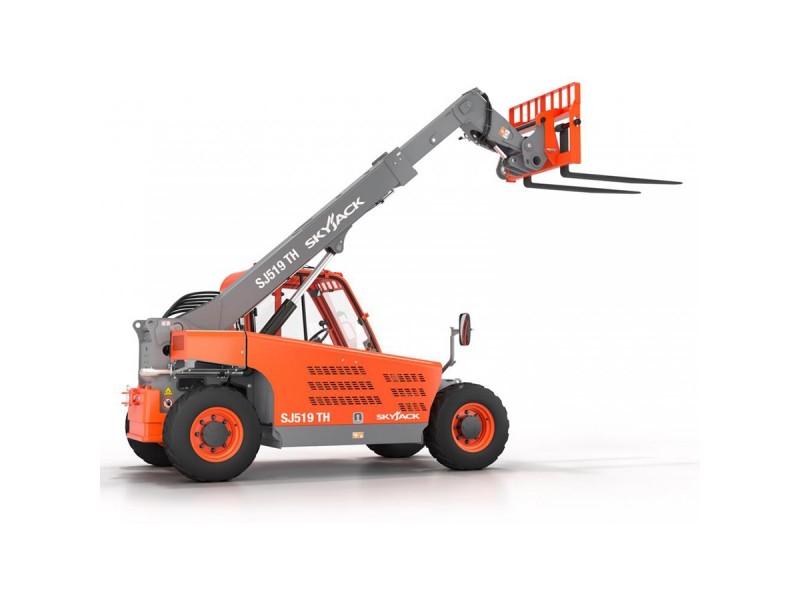

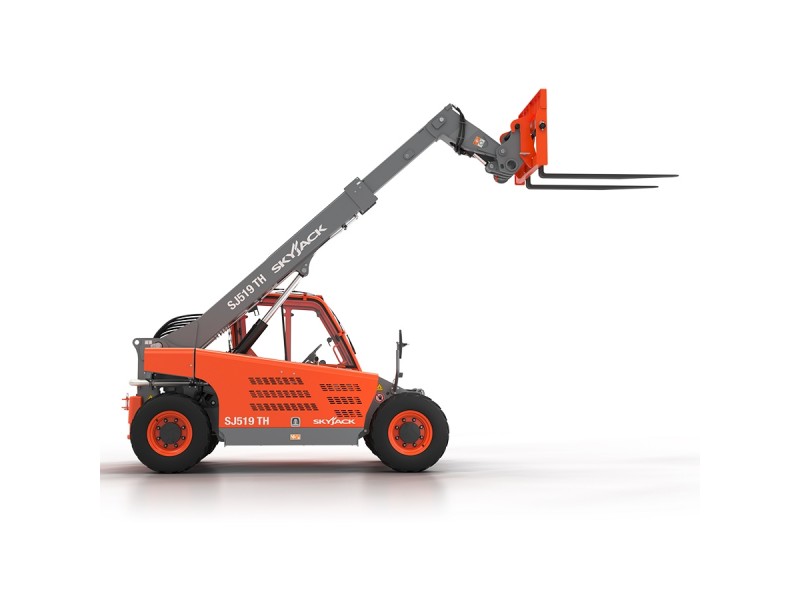

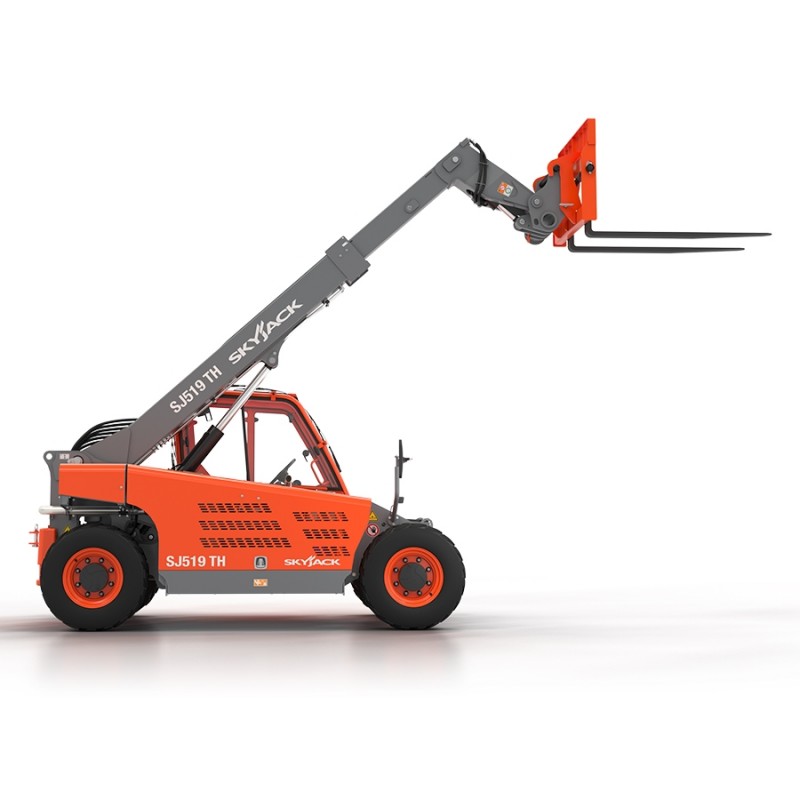

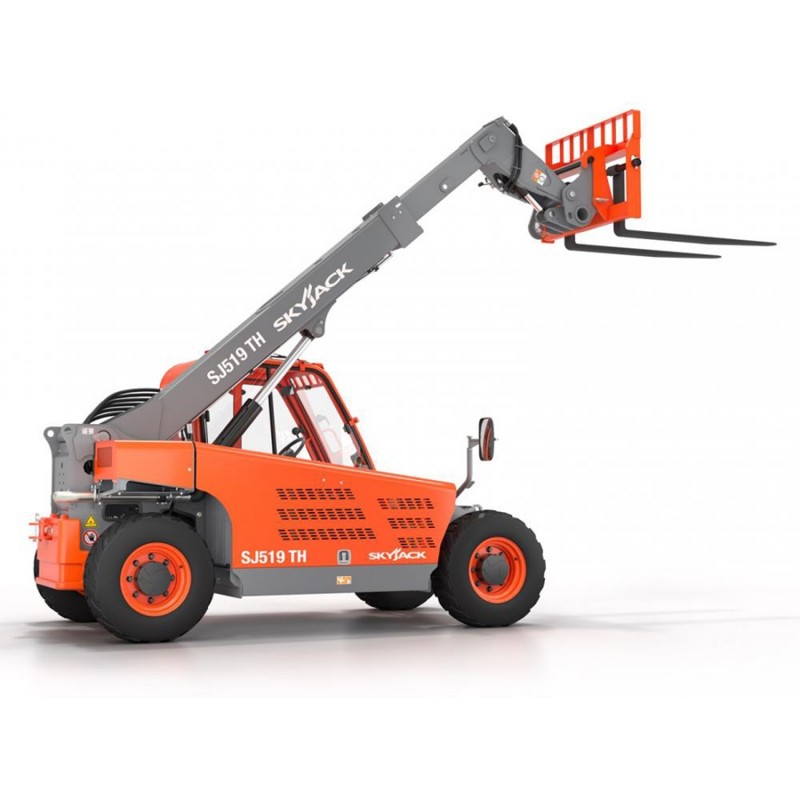

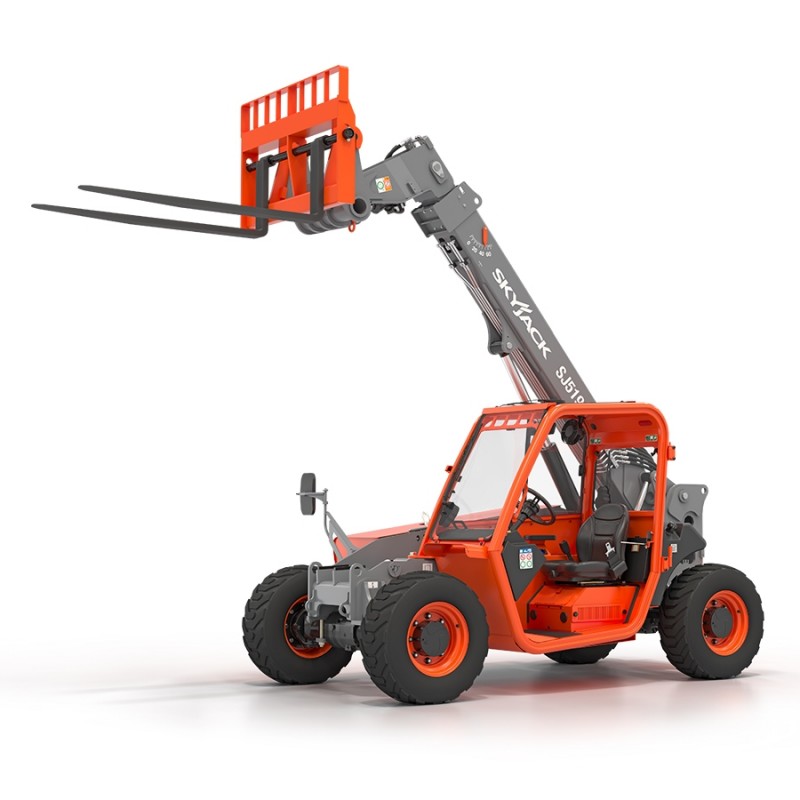

19' Lift Height, Telehandler Extending Boom Forklift, 5,500 lbs Capacity, Skyjack Model SJ519TH-31

5,500 lbs lifting capacity and 19'-1" reach. Compact, yet powerful and roomy, you'll enjoy every second spent operating this machine as you cruise through your work day.
$289.00
    :
    :

* Required Fields

$289.00

Calculating...

If cancelled or rebooked, a Cancellation Fee of + any applicable tax will apply.

Details

19' Lift Height, Telehandler Extending Boom Forklift Rental, 5,500 lbs Capacity, Skyjack Model SJ519TH

Featuring a 74-horsepower, Tier 4 Final Deutz engine that does not require a diesel particulate filter, diesel exhaust fluid or any exhaust after treatment.

The SJ519 also features hydrostatic drive and Dana axles. An engine block heater is standard.

Other standard features on the SJ519 include a multi-function engine display and rear counterweight.

Features

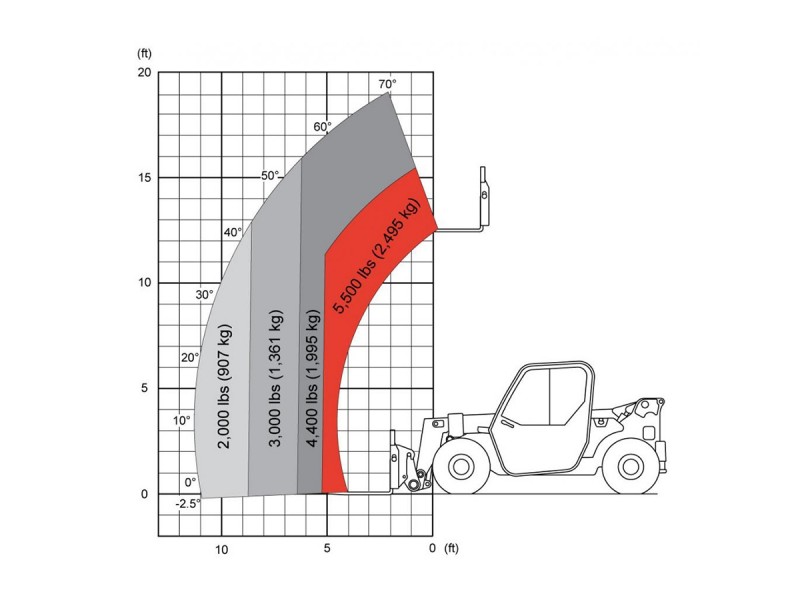

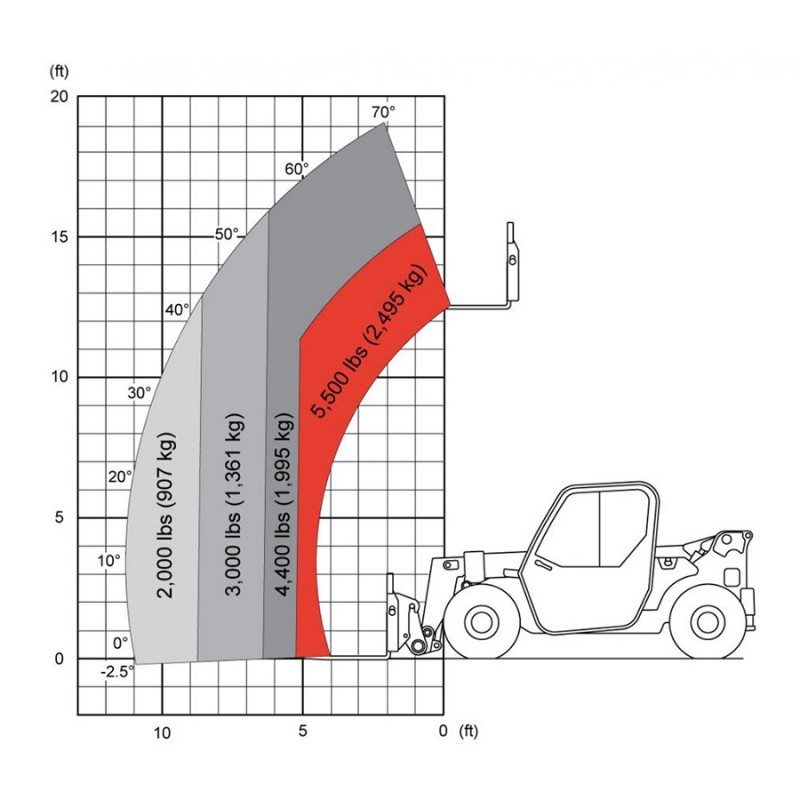

▪ 5,500 lbs (2,495 kg) Maximum lift capacity
▪ 19’ 1” (5.82 m) Maximum lift height
▪ 4,400 lbs (1,996 kg) Capacity @ maximum lift height
▪ 11’ 1” (3.44 m) Maximum forward reach
▪ 2,000 lbs (907 kg) Capacity @ maximum forward reach
▪ DPF & DEF Free Tier 4 Final 74hp/184 lb-ft Deutz TCD 2.2L engine
▪ Hydrostatic drive & Dana axles
▪ 3 Mode steering
▪ Yoke mounted lifting shackle
▪ 48” Quick attach, floating pin carriage
▪ Pallet forks, 1.5” x 4” x 48”, 5,500 lbs capacity
▪ Foam-filled grip lug 12 x 16.5

Specifications

  • Weight
  • 11000 lbs (4989.52 kg)
  • Manufacturer
  • Skyjack
  • Power
  • 74 hp/184 lb-ft Deutz TCD 2.2L T4F
  • Features
  • Open Station, ROPS
  • Height, Maximum Lift
  • 19'-1"
  • Reach, Maximum
  • 11'-1" (3.38 m)
  • Capacity, Maximum Lift
  • 5,500 lbs
  • Capacity, Fuel
  • 15.1 gallons (57 l)
  • Capacity, Hydraulic System
  • 18.5 gallons (70 l)
  • Length
  • 13'-5" (4.09 m), less forks
  • Width
  • 5'-11.5" (1.81 m)
  • Height
  • 6'-4" (1.93 m)
  • Color
  • Orange

Customer Responsibility

  • Valid Driver's License
  • Insurance
  • Daily Inspection & Maintenance
  • Full Terms & Conditions Shown During Checkout and on Your Rental Contract

Additional Requirements if Transporting:

  • 3/4 Ton Truck Minimum
  • Trailer Hitch with 2-5/16" Ball
  • Fully Functional Electric Brake Controller
  • 7-Pin Round Trailer Plug
  • Trailer Rated for Minimum 12K lbs Payload (if customer supplying trailer)
