Mini Track Loader Skid Steer

Mini Track Loader Skid Steer, Baumalight Model TRL620Y

$199.00

Rental Start Date/Time Required

Rental Period
^RequiredRental Start Date Time: :
^RequiredRental End Date Time: :

* Required Fields

$199.00

Delivery Option Required

Customer Pick Up
Include Delivery

Calculating...

If cancelled or rebooked, a Cancellation Fee of + any applicable tax will apply.

Details

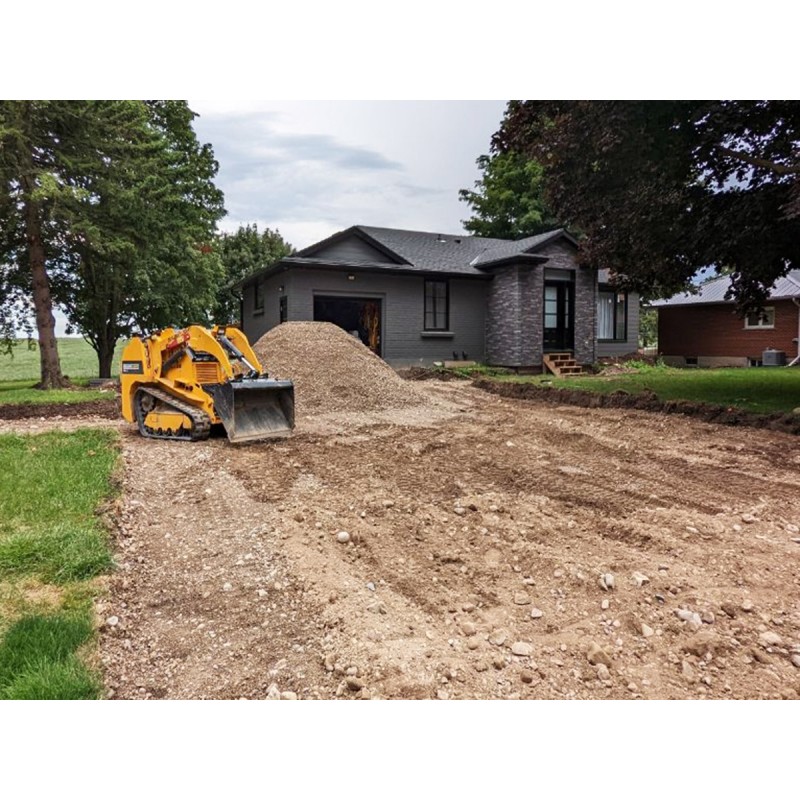

Mini Track Loader Skid Steer, Baumalight Model TRL620Y - Equipped with 42" Dirt Bucket

The Baumalight TRL620Y tracked mini skidsteer is powered by a Yanmar diesel engine.

The hydrostatic drive is set up with two joystick controls with hydraulic pilot lines just like large skidsteers have. The remote hydraulic pump system with case drain delivers hydraulic flow that can be set to maximum engine capacity and the standard self-levelling bucket reduces spills and provides extra control when loading and unloading material. The Baumalight all metal frame mini track loader also features durable rubber tracks that can handle uneven or rough terrain, and ride-on platform for improved visibility while maneuvering through confined areas.

A three-pump hydraulic operating system is used, one for hydraulic flow to run the machine’s auxiliary & boom and two pumps for the propulsion systems, one for each drive motor. There is also a dedicated oil cooler to better manage hydraulic heat generation and the lift cylinders are cushioned at the end of stroke.

Features

SPRING CUSHIONED FRONT IDLER
The front idler in the tracked model is spring cushioned. This spring cushioning provides relief on the undercarriage when the track hits a curb or a large rock.

OPERATING CAPACITY
The TRL620Y model offers a best in class operating capacity of 800 lbs (50% of tip capacity).

FAR REACH
When you need to reach a far distance, the Baumalight Tracked model is designed for maximum reach. This design feature allows you to load and unload trailers or dump your load from further away.

HYDRAULIC FLOAT
The hydraulic float feature allows the operator to gently skim the attachment along the contour of the surface without down pressure or lift.

DUAL JOYSTICK CONTROLS
The dual joystick control system allows you to easily operate the drive system and the boom at the same time.

AUX PRESSURE GAUGE AND 12V PLUG
The dashboard has a convenient auxiliary pressure gauge and a 12V plug.

STANDARD CASE DRAIN
Sometimes referred to as a third line, the case drain line will relieve any excess pressure and drain it back to your return line, then into the reservoir.

GROUND SPEED
The ground speed of the Baumalight Mini Skidsteers is quite impressive with the tracked model able to reach 4.57 km/h.

YANMAR DIESEL ENGINE
The TRL620Y model is powered by a rugged 22.8 HP Yanmar 3TNV80F diesel engine. The increased displacement (1.267 L) of the Yanmar engine equates to a higher torque output.

COLD AIR INTAKE AND OVERSIZED RADIATOR
To increase the power and ensure cooler running, the Yanmar engine has a cold air intake and an oversized hydraulic radiator.

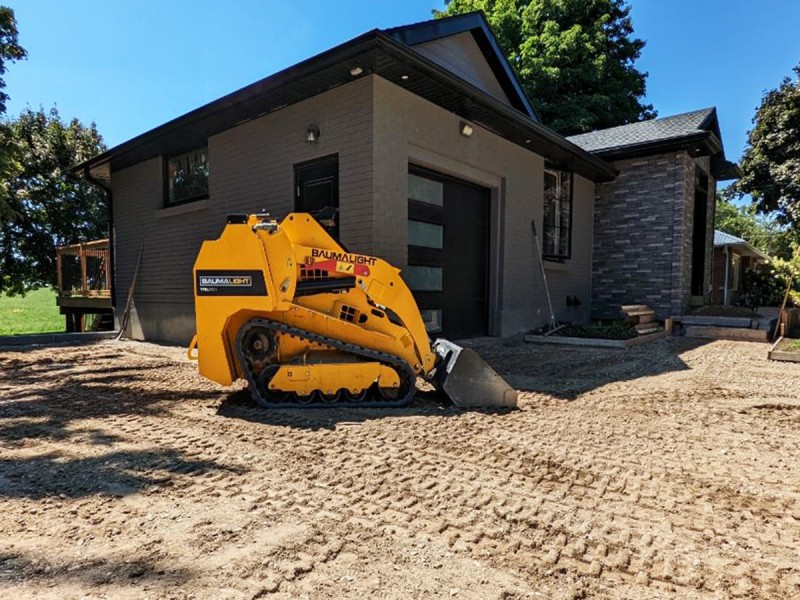

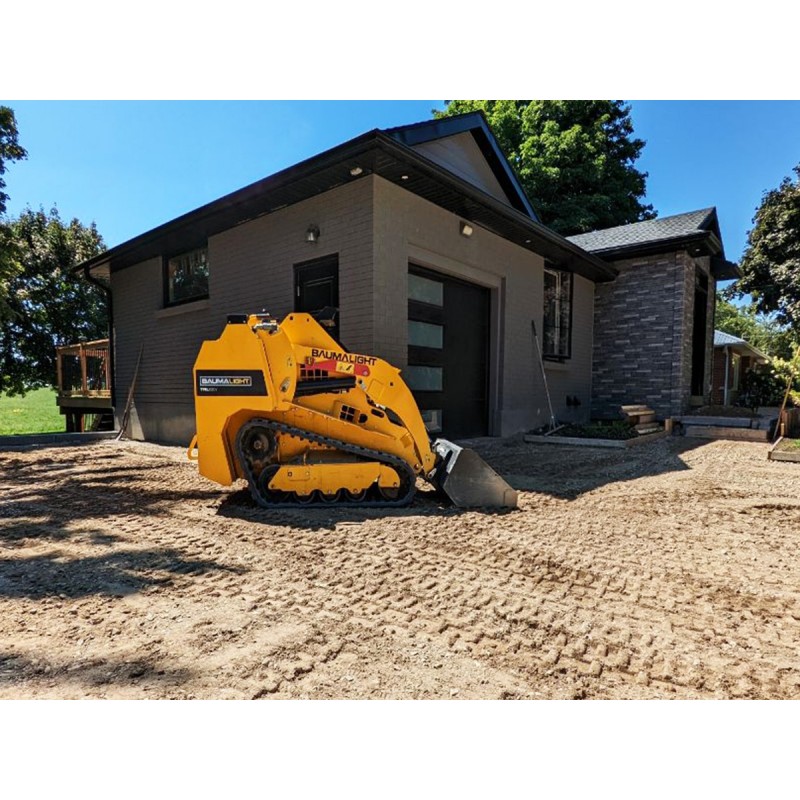

HIGH CAPACITY FUEL TANK WITH GAUGE
The high capacity fuel tank holds 40L of fuel allowing you to work longer. The tank also comes with a convenient fuel gauge.

DOUBLE PISTON PUMP DRIVEN
Both sides of the Mini Skidsteer is driven by a dedicated dual piston hydraulic pump and a third one operates the boom & hydraulic AUX.

GROUND CLEARANCE
The TRL620Y has a ground clearance of 6.5 inches.

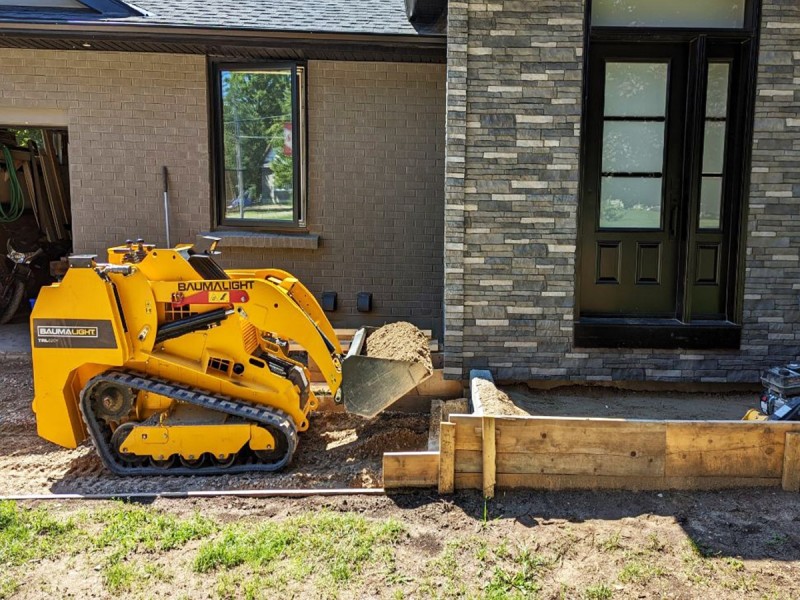

BOOM SAFETY LOCK BAR
When you need to perform maintenance, the boom safety lock bar allows you to raise the boom and engage the locking bar. How you can safety stand under the raised boom without risk of the boom dropping.

FULL STAND-IN OPERATOR COMPARTMENT
For a safer and more comfortable operation, the operator compartment allows you to fully stand inside.

STANDARD SELF-LEVELLING VALVE
The self-levelling valve makes sure the load remains level to the ground while you’re raising the boom.

DUAL HEADLIGHTS
For better visibility at night, the TRL models have two headlights. One mounted on the boom and one mounted on the frame.

PROTECTED LIGHTS
The front lighting system is securely encased in a metal frame to keep it protected from damage.

Protected lights
HEAVY DUTY BOOM
The boom arms are constructed with 3/4" thick steel plates.

GREASE PINS ON ALL PIVOT POINTS
The Mini Skidsteer features grease pins on all pivot points, reducing the risk of equipment damage and providing long life and easy servicing.

Specifications

Weight
2930 lbs (1329.03 kg)

Manufacturer
Baumalight

Horsepower
22.8 Yanmar Diesel Engine

Features
Bucket Quick-Change, Open Station, Rubber Tracks

Auxiliary Hydraulic Flow
12 gpm

Capacity, Operating
800 lbs

Tipping Load
1650 lbs

Capacity, Fuel
10.6 gals (40 liters)

Capacity, Hydraulic System
10.6 gals (40 liters)

Color
Yellow

Operator Manual
Download

Product Video
https://youtu.be/xcmayol0Y80

Customer Responsibility

▪ Valid Driver's License
▪ 1/2 Ton Truck Minimum
▪ Trailer Hitch with 2-5/16" Ball
▪ Fully Functional Electric Brake Controller
▪ 7-Pin Round Trailer Plug
▪ Trailer Rated for Minimum 3.5K lbs Payload (if customer supplying trailer)
▪ Equipment Insurance
▪ Daily Maintenance
▪ See Rental Contract for Full Terms & Conditions
