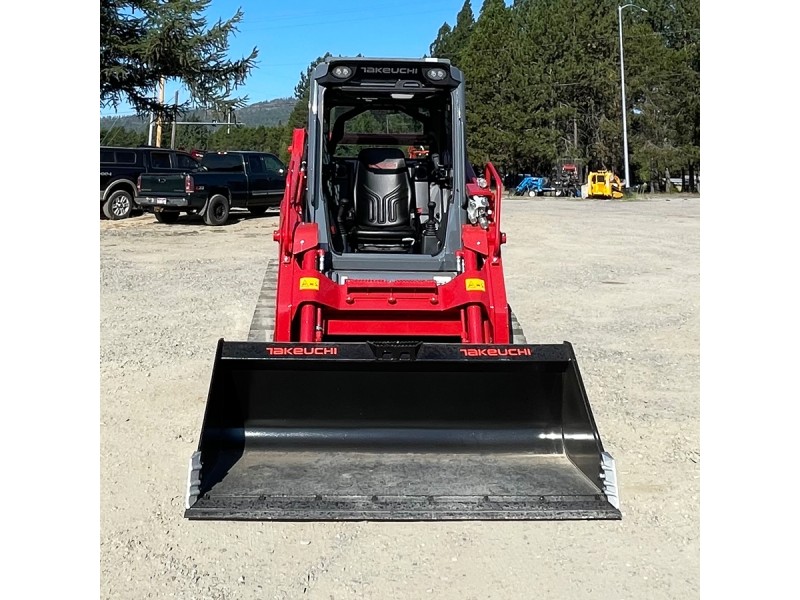

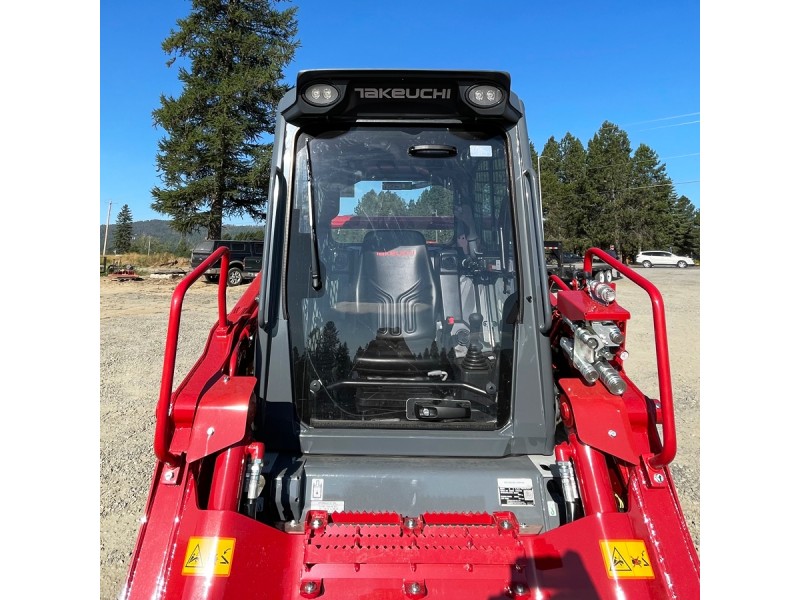

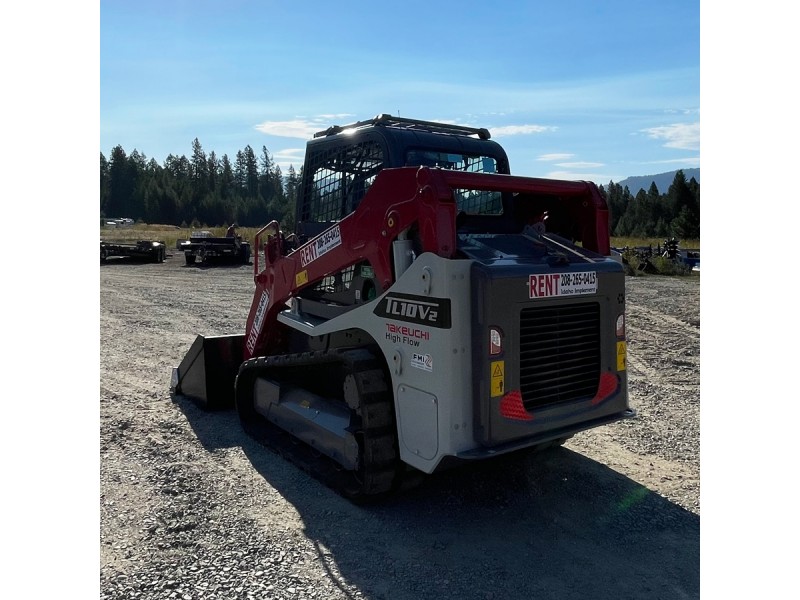

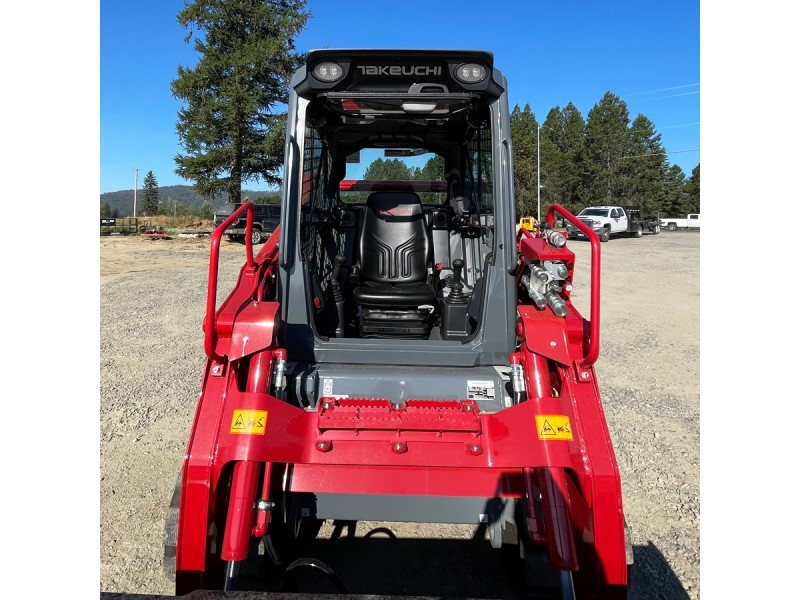

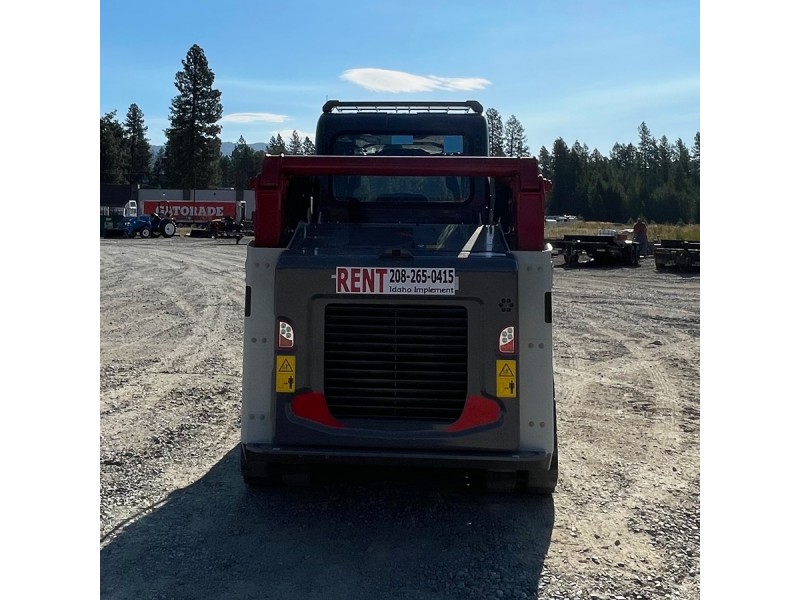

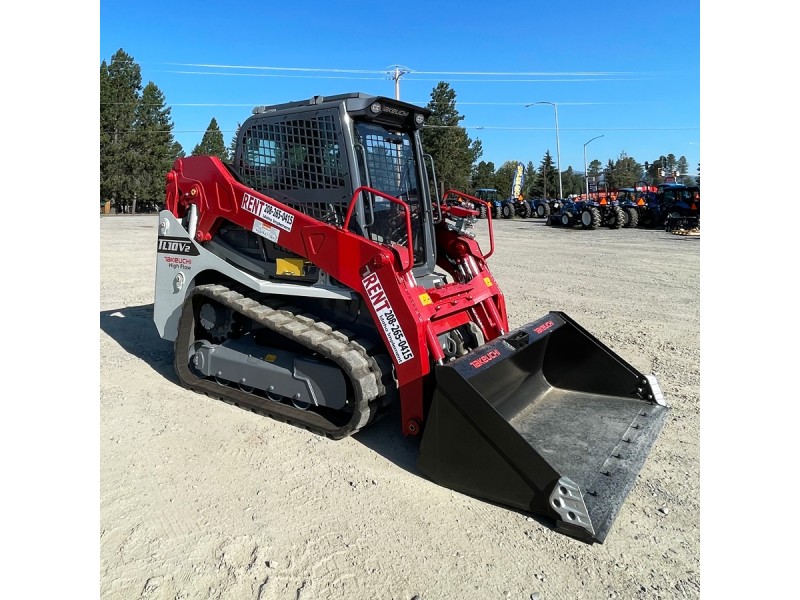

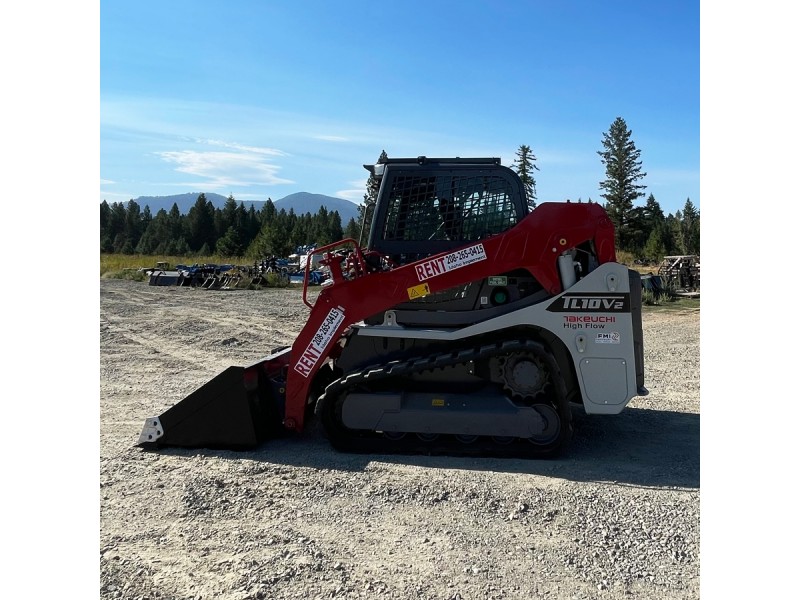

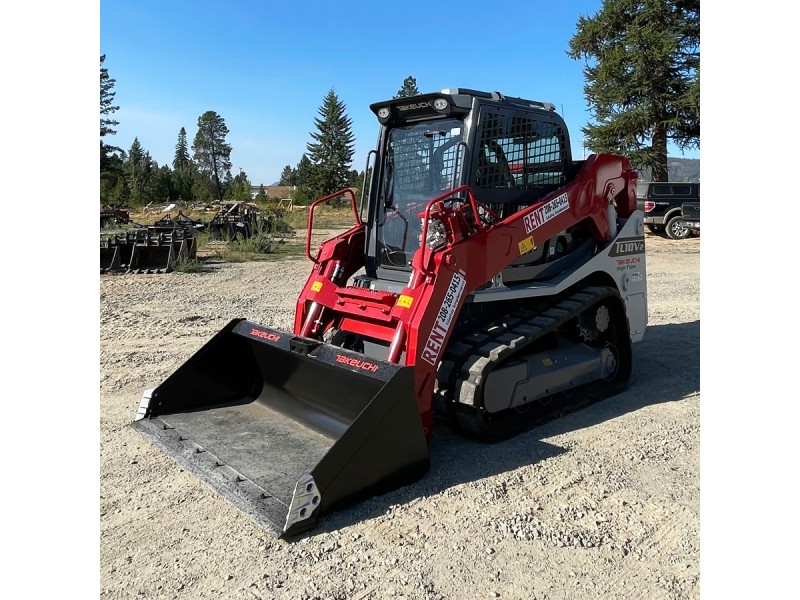

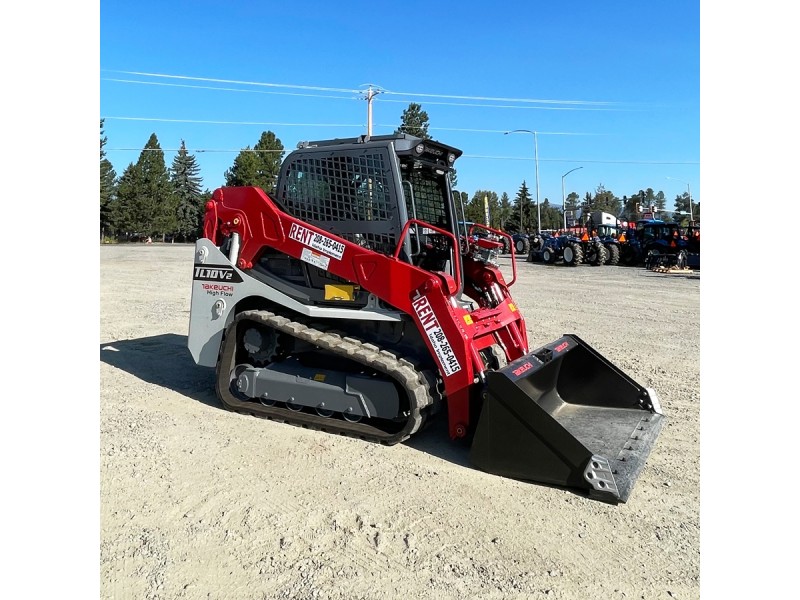

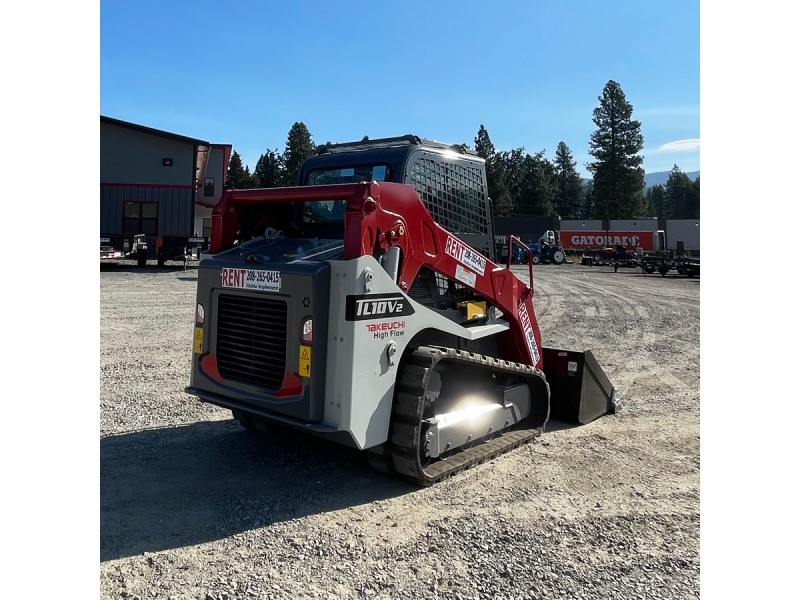

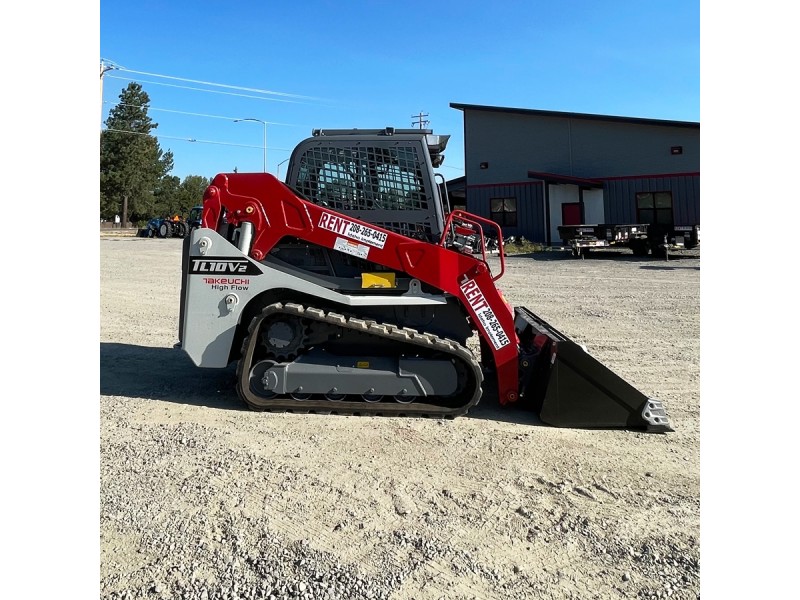

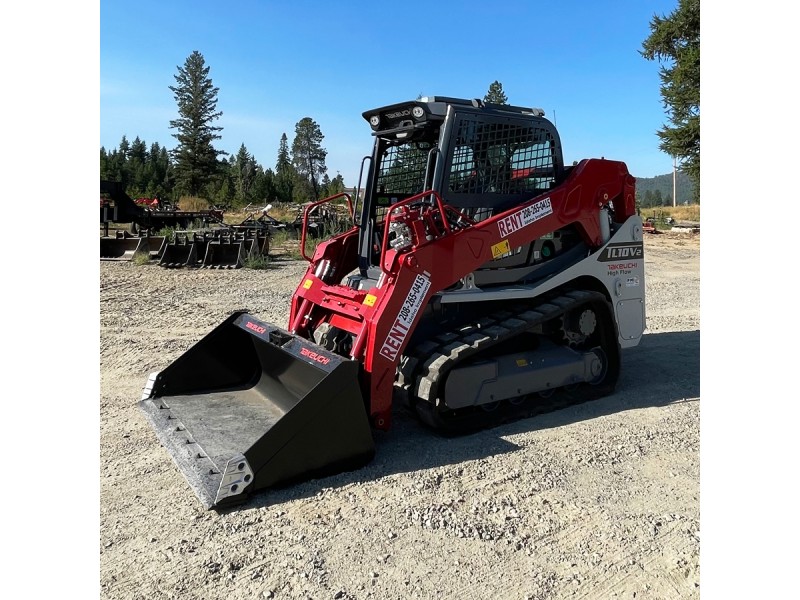

10,000 lbs Track Loader, Enclosed Cab, Heat, AC, High Flow, 2-Speed Travel, Takeuchi Model TL10V2

The TL10V2 vertical lift track delivers excellent functionality, performance, comfort, and serviceability.
$359.00
    :
    :

* Required Fields

$359.00

Calculating...

If cancelled or rebooked, a Cancellation Fee of + any applicable tax will apply.

Details

10,000 lbs Track Loader, Enclosed Cab, Heat, AC, High Flow, 2-Speed Travel, Takeuchi Model TL10V2

The TL10V2 vertical lift track delivers excellent functionality, performance, comfort, and serviceability. It features a completely redesigned operator' station with a 5.7" color multi-information display and updated rocker switches that control a wide range of machine functions. Cab models have a smooth, low effort overhead door that improves entry and egress and enables the loader to be operated with the door in the raised or lowered position. An updated undercarriage with a wide block quiet ride track system provides better flotation, improved ride quality, and a reduction in noise and vibration.

Features

ENGINE
  • EPA Final Tier 4 Emission Compliant
  • Turbocharged
  • High Pressure Common Rail Injection System
  • DOC+DPF Exhaust After Treatment
  • Automatic Fuel Bleed System
  • Active Power Control Power Management System
  • Working Modes - Standard and ECO
  • Dual Element Air Filter
  • Dial and Foot Throttle
  • High Capacity Radiator and Hydraulic Oil Cooler Mounted Side-by-Side on Swing Out Frame

ELECTRICAL
  • 5.7" Multi-Informational Color Display
  • Sealed Rocker Switches
  • 12 volt System with 60 amp Alternator
  • LED Work Lights: Two Front and Two Rear
  • Engine Preheat
  • Hour Meter
  • Back-up Alarm

UNDERCARRIAGE AND FRAME
  • Double Planetary Reduction Drives
  • Permanently Sealed Track Rollers with Metal Face Seals
  • Fully Welded Frame with Integrated Cross Members
  • Two-Speed Travel
  • 15.7” Rubber Track
  • Grease Type Track Adjuster
  • Front and Rear Tie-Down Points and Lift Points
  • Rear Bumper Integrated into Frame

HYDRAULIC & WORKING EQUIPMENT
  • Vertical Lift Design
  • Pilot Hydraulic Controls
  • Boom Float with Detent
  • Cushioned Boom Cylinders
  • Hydraulic Self Leveling
  • Proportional Auxiliary Hydraulic Controls with Detent
  • Pressure Relieving Flat Faced Coupler Body
  • 14-Pin Connector with Push Button Control
  • High Capacity Steel Hydraulic Tank
  • Hydraulic Quick Coupler
  • High Flow Auxiliary Hydraulics 32.8 gpm

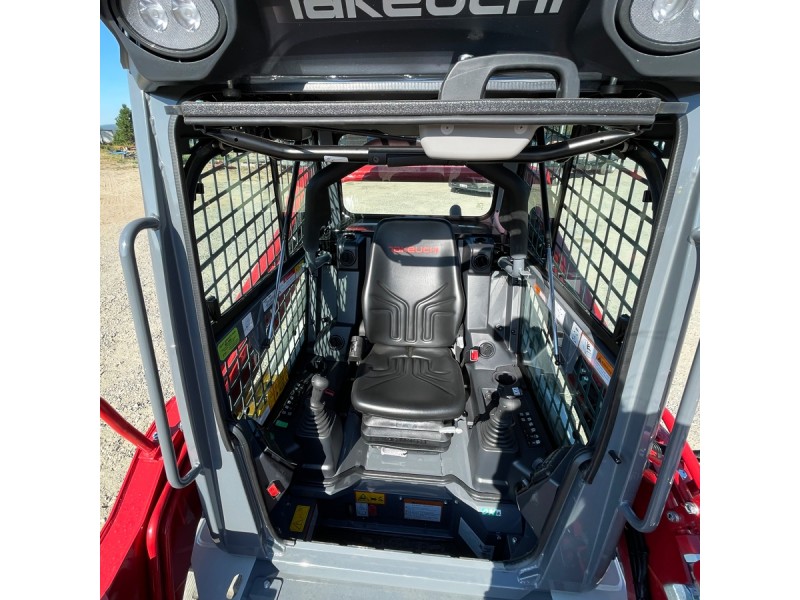

OPERATOR’S STATION
  • Tilt-up Operator’s Station
  • Deluxe High Back Suspension Seat
  • Rear View Camera
  • Rear Pivoting Lap Bar with Arm Rest
  • ROPS / FOPS Structure
  • Retractable 2” Seat Belt
  • Pressurized Cab with Roll-up Door A/C, Heat, Defrost and Front Wiper
  • AM / FM / MP3 Radio
  • Polycarbonate Door and Level 2 Guard

Specifications

  • Weight
  • 10300 lbs (4672.01 kg)
  • Manufacturer
  • Takeuchi
  • Operator Station
  • Enclosed Cab, Heat & A/C
  • Horsepower
  • 74.3 hp
  • Features
  • Air Conditioning, Bucket Quick-Change, Enclosed Cab, EROPS, Heat, ROPS, Rubber Tracks
  • Auxiliary Hydraulic Flow
  • Standard: 18.8 gpm (71.2 lpm); High Flow: 32.8 gpm (124.0 lpm)
  • Height, Maximum Lift
  • 121" (10'-1") to Bucket Pins
  • Capacity, Operating
  • At 50% of Tipping Load: 3,600 lbs
  • Tipping Load
  • 7,205 lbs
  • Width, Bucket(s)
  • 76"
  • Capacity, Fuel
  • 21.5 gal (81.0 l)
  • Capacity, Hydraulic System
  • 17.2 gal (65.0 l)
  • Capacity, Engine Oil
  • 11.8 qt (11.2 l)
  • Length
  • 145" (12'-1") - Including Bucket
  • Width
  • 68.5" (5'-8.5") - Outside of Tracks
  • Height
  • 89.4" (7'-5.4")
  • Color
  • Red

Customer Responsibility

  • Valid Driver's License
  • Insurance
  • Daily Inspection & Maintenance
  • Full Terms & Conditions Shown During Checkout and on Your Rental Contract

Additional Requirements if Transporting:
  • 3/4 Ton Truck Minimum
  • Trailer Hitch with 2-5/16" Ball
  • Fully Functional Electric Brake Controller
  • 7-Pin Round Trailer Plug
  • Trailer Rated for Minimum 12K lbs Payload (if customer supplying trailer)
