  • 43' Lift Height, Telehandler Extending Boom Forklift, 8,000 lbs Capacity, Skyjack Model SJ843TH-30


More Views

Images are representative but may vary from actual product and/or show optional features.

SKU:REN-SJ843TH-30

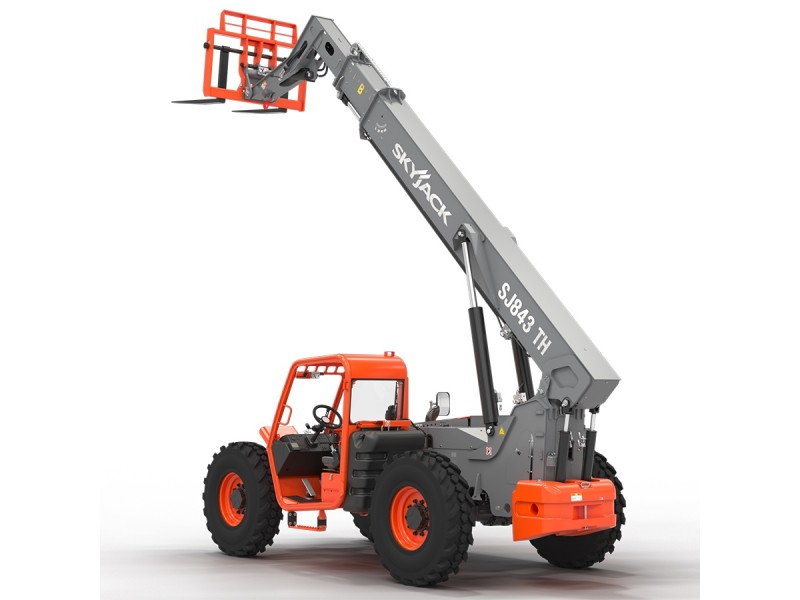

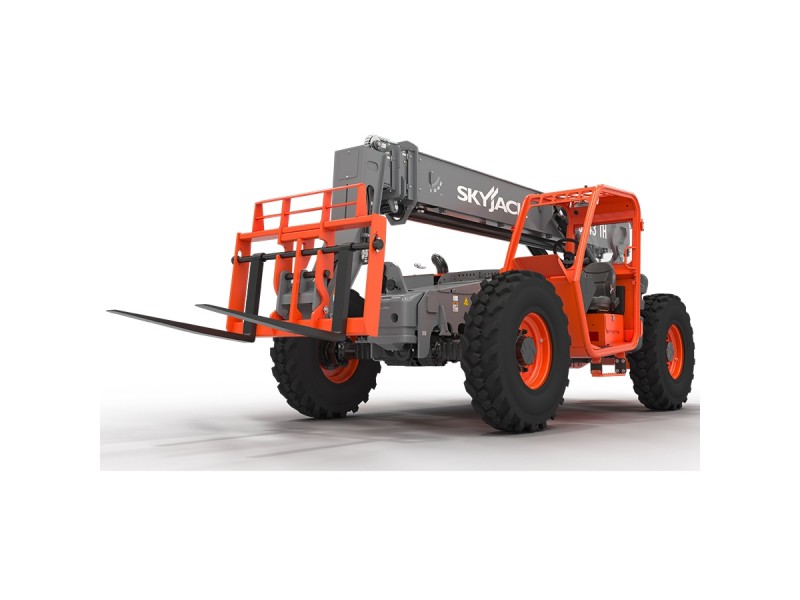

43' Lift Height, Telehandler Extending Boom Forklift, 8,000 lbs Capacity, Skyjack Model SJ843TH-30

43' Lift Height, Telehandler Rental Extending Boom Forklift, 8,000 lbs Capacity, Skyjack Model SJ843TH
$379.00
    :
    :

* Required Fields

$379.00

Calculating...

If cancelled or rebooked, a Cancellation Fee of + any applicable tax will apply.

Details

43' Lift Height, Telehandler Rental Extending Boom Forklift, 8,000 lbs Capacity, Skyjack Model SJ843TH

Features

  • Overall Width    8’ 5” (2.56 m)
  • Ground Clearance    19" (48.3 cm)
  • Turning Radius (Inside)    147” (3.73 m)
  • Fuel Tank    35.7 gal. (142 L)
  • Hydraulic Reservoir    43.85 gal. (166 L)
  • Maximum Lift Capacity    8,000 lbs (3,629 kg)
  • Maximum Lift Height    43’ 4” (13.21 m)
  • Maximum Forward Reach    28’ 7” (8.71 m)
  • Rated Lift Capacity @ Maximum Height    6,000 lbs (2,722 kg)
  • Rated Lift Capacity @ Maximum Reach    1,900 lbs (862 kg)
  • O/A Length - Less Forks    19’ 6” (5.94 m)
  • Overall Height - Stowed    7’ 11” (2.41 m)
  • Operating Weight    23,006 lbs (10,435 kg)
  • Engine    74hp / 221 lb-ft Deutz TCD 2.2L T4F
  • Max Travel Speed - Forward    17mph (27 km/h)
  • Transmission    Dana Powershift, 3 Speeds F/R
  • Axles    Dana
  • Steering    3 mode (Front Wheel, 4 Wheel, Crab)
  • Tires    Foam Filled 13 x 24 16PR Grip Lug
  • Drawbar Pull    17,750 lbs

Specifications

  • Weight
  • 24000 lbs (10886.23 kg)
  • Manufacturer
  • Skyjack
  • Horsepower
  • 74hp / 221 lb-ft Deutz TCD 2.2L T4F
  • Features
  • Open Station, ROPS, Rubber Tires
  • Height, Maximum Lift
  • 43'-4" (13.21 m)
  • Reach, Maximum
  • 28'-7" (8.71 m)
  • Capacity, Maximum Lift
  • 8,000 lbs
  • Capacity, Fuel
  • 35.7 gal (142 l)
  • Capacity, Hydraulic System
  • 43.85 gal. (166 l)
  • Length
  • 19'-6" (5.94 m) - less forks
  • Width
  • 8'-5" (2.56 m)
  • Height
  • 7'-11" (2.41 m) - stowed
  • Color
  • Orange

Customer Responsibility

  • Valid Driver's License
  • Insurance
  • Daily Inspection & Maintenance
  • Full Terms & Conditions Shown During Checkout and on Your Rental Contract

Additional Requirements if Transporting:
  • 3/4 Ton Truck Minimum
  • Trailer Hitch with 2-5/16" Ball
  • Fully Functional Electric Brake Controller
  • 7-Pin Round Trailer Plug
  • Trailer Rated for Minimum 12K lbs Payload (if customer supplying trailer)
